A Comprehensive Guide: How to Set SWR and Tune Your CB Radio Antenna for Optimal Performance

A Comprehensive Guide: How to Set SWR and Tune Your CB Radio Antenna for Optimal Performance

WeiBinghuang @

Introduction and Critical Safety Warnings
Setting a proper Standing Wave Ratio (SWR) is not merely a suggestion—it is a fundamental requirement for anyone operating a Citizens Band (CB) radio. A well-tuned antenna system ensures maximum power is radiated as a signal, rather than being reflected back into your radio's final amplifier, where it converts into damaging heat. This guide will walk you through the process, but your primary reference must always be the official operating manuals for your specific radio, antenna, and SWR meter. While the core principles are universal, switch labels, calibration controls, and antenna adjustment mechanisms can vary between manufacturers and models.
Before touching any equipment, internalize these non-negotiable safety rules:
  • Never, under any circumstances, transmit without an antenna connected to your radio. Doing so will cause catastrophic damage to the transmitter almost instantly.
  • Never transmit for extended periods with a poorly tuned antenna (high SWR). This is a surefire way to overheat and destroy your radio's output transistors. Think of high SWR as a self-destructive feedback loop inside your radio.
  • Ensure all connections are tight and weatherproofed if installed outdoors. A loose connector is a common source of poor SWR.
Part 1: Preparation and Equipment Connection
A correct measurement requires a correct setup. The goal is to measure the entire antenna system as it will be used.
  1. Permanent Antenna Installation: Begin by mounting your antenna in its permanent location—on your vehicle's roof, a mast on your house, or wherever you plan to operate. The SWR is highly influenced by the surrounding metal (the "ground plane"), so a measurement taken with the antenna on the ground or in a different position will be inaccurate.
  2. Understanding the Chain: The signal flow is: Radio -> SWR Meter -> (Any Accessories) -> Antenna. Your SWR meter is a diagnostic tool inserted into this line.
  3. Making the Connections:
    • Connect the cable coming from your antenna to the port on the SWR meter labeled [ANT] or Antenna.
    • Using a short, high-quality coaxial cable (ideally under 50 cm / 20 inches), connect the port on the SWR meter labeled [TX] (Transmitter) or [RADIO] to the antenna socket on the back of your CB radio.
    • Crucial Note on Accessories: If you use any in-line devices like an antenna switch, a pre-amplifier, or a linear amplifier (where legal), these must be connected between the SWR meter's [ANT] port and the antenna itself. This ensures the SWR reading accounts for the effect of all components in the signal path.
  4. Finalizing Setup: Connect your CB radio to its power source (e.g., vehicle battery with proper fusing) and turn it on. Set the modulation mode to FM (the standard for most modern CB communications) and ensure the RF gain is at maximum. Have your microphone ready.
Part 2: The Step-by-Step SWR Measurement Procedure
For a 40-channel CB radio, we measure at the band edges and the center to map performance.
  1. Select Initial Channel: Tune your radio to Channel 20 (27.205 MHz). This is the approximate center of the 40-channel band and your primary tuning point.

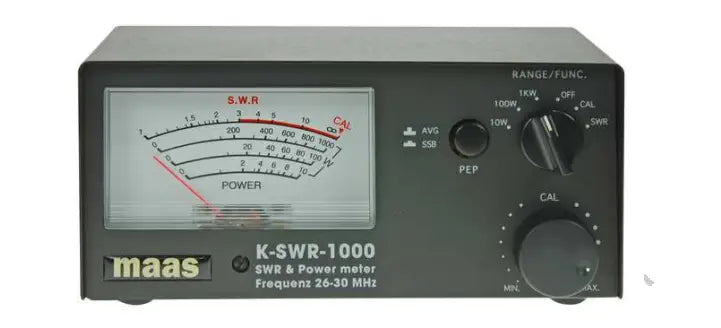

  2. Calibrate for Forward Power:
    • Set the function switch on your SWR meter to the [FWD] (Forward) position.
    • Press and hold the microphone's [PTT] (Push-To-Talk) button. Speak at a normal, consistent tone into the mic to provide a steady carrier wave.
    • While transmitting, carefully adjust the [CAL] (Calibrate) knob or screw on the meter until the needle swings precisely to the [SET] or Calibrate mark on the scale (often at the far right, sometimes marked as ∞).
    • Release the PTT button. The radio is now receiving again.
  3. Read the SWR Value:
    • Flip the meter's function switch to [REF] (Reflected) or [SWR].
    • Press the PTT button again (maintaining a steady tone). The needle will now move to a new position. This number is your SWR reading.
    • Note the reading for Channel 20. Release PTT.
  4. Repeat for Band Edges: To understand the antenna's tuning across the entire band, repeat the exact calibration and reading process on Channel 1 (26.965 MHz, the low end) and Channel 40 (27.405 MHz, the high end). Remember, you must perform the [FWD] calibration step on eachchannel before taking its SWR reading. The calibration on Channel 20 does not apply to other channels.
Part 3: Interpreting Your SWR Readings and Adjustment Goals
Your measurements tell a story. Here’s how to interpret them:
  • SWR of 1:1 to 1.5:1 (Excellent): Your antenna system is exceptionally well-tuned. Over 99% of your radio's power is being radiated. No adjustment is needed.
  • SWR of 1.5:1 to 2.5:1 (Good to Fair): This is a functional and common range. Performance is acceptable, especially for receive, but you are losing some transmit efficiency. Adjustment is recommended to optimize performance and protect your radio long-term.
  • SWR of 2.5:1 to 3:1 (Poor): Performance is significantly degraded. Avoid lengthy transmissions. You should definitely adjust the antenna.
  • SWR Above 3:1 (Dangerous/Unacceptable): Stop transmitting immediately. This indicates a serious problem such as a short circuit in the coax, an open connection, a broken antenna element, or a severe impedance mismatch. Continuing to operate will damage your radio. Diagnose all connections and cables before proceeding.
The universal rule: Your SWR should ideally be below 2:1 across all channels you use, and must absolutely be below 3:1 to prevent hardware failure.
Part 4: Antenna Tuning and Fine-Tuning Methodology
Tuning adjusts the antenna's electrical length to resonate perfectly within the CB band. Always consult your antenna's manual first, as some are pre-tuned. The following is a general principle for tunable antennas (e.g., whip antennas with a set screw).
  1. Diagnose the Pattern: Based on your three measurements (Ch. 1, 20, 40):
    • Lowest SWR on Channel 1, Highest on Channel 40: This means your antenna is too long electrically. It is resonant at a frequency belowthe CB band. You need to shorten the radiating element.
    • Lowest SWR on Channel 40, Highest on Channel 1: This means your antenna is too short electrically. It is resonant at a frequency abovethe CB band. You need to lengthen the radiating element.
    • Lowest SWR on Channel 20, with higher but roughly equal SWR on Ch.1 and Ch.40: This is the ideal scenario, showing the antenna is centered on the band. Your goal is to lower that Ch.20 SWR as close to 1:1 as possible, which will also bring down the edge-channel readings.
  2. Perform the Adjustment:
    • Locate the tuning mechanism—usually a set screw near the top of the antenna that allows you to extend or retract a whip section.
    • Make very small adjustments (e.g., 1-3mm or 1/8 inch at a time). Antenna tuning is sensitive.
    • Re-measure on Channel 20 after every single adjustment. The process is iterative: adjust -> measure -> analyze -> adjust again.
    • Your objective is to get the lowest possible SWR on Channel 20, while ensuring neither Channel 1 nor 40 exceed a safe value (under 2:1 is the goal).
  3. Final Verification: Once satisfied with the Channel 20 reading, perform a full sweep again (Ch.1, 20, 40) to confirm the SWR curve is low and flat across the entire band. Congratulations—your antenna is now properly tuned for safe and effective communication. Remember to re-check SWR periodically, especially if the antenna is disturbed or after significant weather changes.
