CB Radio: The Secrets Behind Long-Range Communication

Whether you want to "chat" with friends nearby or connect with distant stations on another continent, CB radio can deliver both. But what actually determines the range of CB radio? Let's find out.

As hams often say: "RF and love travel in strange ways." Sometimes, even with maximum power, you can't reach the next village; other times, you can reach South America with just 1 watt. Why does this happen?

The Physics of Radio Wave Propagation

The study of radio wave physics has been active for over a century, and even today, not all effects are fully understood. Propagation depends heavily on frequency. For CB radio, we're talking about frequencies in the upper shortwave range—at 27 MHz. For this band, there are two possible propagation paths: ground wave and sky wave.

Ground Wave: Local Communication

Ground wave propagates along the Earth's surface. It suffers strong attenuation because ground, rocks, and terrain are poor electrical conductors. This severely limits range to a few to a few dozen kilometers. The actual range depends on transmitting power, terrain, antenna location, and antenna design. Even with extremely high power and a perfect antenna, physical limits eventually apply.

But sometimes this limited range is exactly what you want. When talking with friends from the local club, signals from great distances can be just as disruptive as thunderstorm interference.

The typical range for ground wave in CB radio is approximately 5 to 30 km, depending on conditions.

Sky Wave: Reaching Across Thousands of Miles

Sky wave follows completely different rules and can provide contact over several thousand kilometers, even with moderate power. Radio waves from the antenna don't just travel along the Earth's surface—they also spread upward. How strongly this occurs depends on the antenna type and setup.

On their journey upward, radio waves eventually encounter reflecting regions of the ionosphere surrounding our planet. The ionosphere is the region far above the atmosphere, from heights of about 80 to 400 km. The name comes from the process of "ionization"—where molecules are "freed" from their electrons by strong radiation. Before losing electrons, the molecule was electrically neutral; after losing its outer shell, it becomes positively charged.

This ionization is exactly what reflects radio waves. Strictly speaking, it's not reflection but diffraction and refraction—phenomena well known from optics.

Where Does This Ionization Come From?

From the sun! Our central star produces unimaginable amounts of energy every second, a significant portion of which reaches Earth as radiation. Fortunately, the ionosphere and atmosphere protect us from the harmful effects of this radiation. At great heights, this energy acts unhindered and—under certain circumstances—causes ionization of air molecules present there.

These "circumstances" are very complex. The degree of ionization depends on air molecule density, solar activity, the angle at which solar radiation hits the Earth, and more.

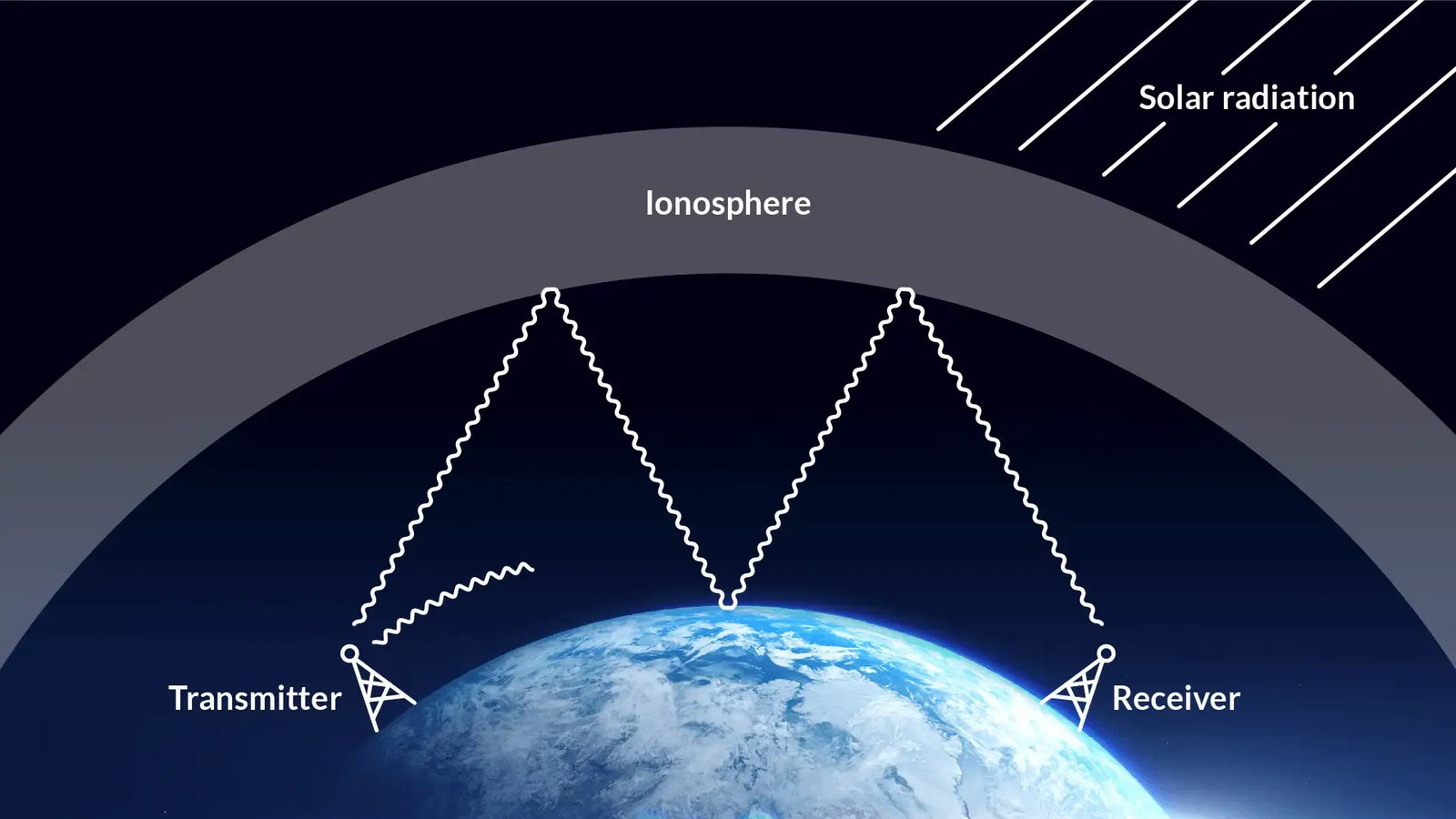

The overall effect of sky wave is reflection of radio waves at heights of 80 to about 400 km. These reflections are not sharply defined and change over time. When they exist, a radio signal can be reflected back to Earth's surface, then upward again, hitting another reflecting layer, and so on. After approximately 7 such "hops," you've gone around the world—creating worldwide shortwave traffic.

For the CB radio frequency of 27 MHz, there's quite frequently a situation during high solar activity where reflecting layers form at about 80-100 km height—the so-called E-layer. Due to the relatively low height, range is limited to about 2000-3000 km; propagation over multiple hops is rare. However, reflection strength is very good, making perfect connections possible with just a few watts. On such days, we hear taxi radio from Moscow as clearly as our neighbor three streets away.

These effects sometimes occur very briefly and sporadically—which is why this phenomenon is called Sporadic-E.

Other effects at greater heights (the F-layers) also exist but occur much more rarely, usually only during high solar activity. And there are effects whose causes remain unclear, such as Trans-Equatorial Propagation (TEP), which often provides CB radio with excellent signals from north to south—for example, from Europe to South America.

What Actually Determines How Far You Can Transmit?

In summary:

• Ground wave: reaches about 5 to 30 km, depending on antenna and location, independent of solar activity
• Sky wave: reaches approximately 400 to 2,000-3,000 km, sometimes further, heavily dependent on solar activity

And as always—without a good, free-standing antenna, hardly anything works.

The Skip Zone: When Your Signal Simply Disappears

The area where the ground wave no longer reaches and where the sky wave hasn't yet arrived is called the "skip zone." In this ring-shaped zone around your location, your signal cannot be heard, even at maximum power.

Antenna Technology: Not Black Magic

For many users, antenna technology seems like black magic. But it's not that complicated if you follow a few basic rules.

Directional vs. Omnidirectional Antennas

• Omnidirectional antennas distribute all energy evenly in all directions. Better suited if you want to reach friends distributed equally around your location. This doesn't mean long-distance connections aren't possible—they just occur less frequently and with greater difficulty.

• Directional antennas bundle the electromagnetic field in a specific direction. Even when talking about antenna gain, an antenna doesn't generate more energy than is put into it—the energy is just concentrated in a particular direction. This helps with long distances—but only in one specific direction. For maximum flexibility, the antenna must be rotatable, which can be quite elaborate depending on antenna size. After all, the antenna and mast must also withstand a storm.

Getting the Maximum Out of Your Antenna

1. Height and clearance: The antenna should be as high and free-standing as possible. Better on the roof of the house—and if the house is on a hill, even better. It's good if there are no large, solid obstacles near the antenna. So preferably above a storage building with metal walls, and certainly far away from electrical lines, metal fences, etc.

2. The right cable: The cable to the antenna should be as short as possible and as long as necessary. So rather a longer cable if you can get to a much better location. A cable that's only 1 meter long is of no use if the antenna is in the basement. The cable should be of good quality and not too thin—thin cables have much higher attenuation, more noticeable in reception than transmission. Good cables have double shielding, which not only helps against interference but also protects from disturbances.

3. Don't skimp on connectors: There are significant quality differences here. If you have no experience mounting coaxial connectors, investing in professional installation is well-spent.

4. Regular inspection: A yearly inspection of the antenna system is very useful and can protect against unexpected disturbances. Many a corroded cable connection has caused strong noise that can completely overlay the useful signal directly at the antenna.

Power: Truths and Myths

Yes, dear transmitting power. Many radio operators keep eyeing the big "burner"—a large transmitting amplifier with high output. Let's address the legal aspect first: In Germany, depending on the CB channel and modulation, between 4 and 12 watts are permitted. There's also a distinction in how power is measured—PEP or ERP. In other words—any higher power is not permitted, even though it would be very helpful for better range.

Beyond the legal aspect, physics also sets simple limits. There are always situations where a lot of power hardly helps. If the terrain is unfavorable, even with 1,000 watts, you won't reach the neighboring valley in the mountains. And if there are no propagation conditions, you can't create them even with an "afterburner"—the distant country remains unreachable. But with good conditions, just a few legal watts will do the job.

There are other aspects to consider when using an amplifier: Interference with neighbors is much more likely, the devices are large and heavy, you need good cooling, etc.

In summary—yes, more transmitting power is helpful in certain situations and increases the chance of reliable communication. But high power is not a cure-all, quite apart from whether it's allowed or not. The legislator has set the power limits for good reasons, so mutual interference can be largely avoided.

Why SSB Maximizes Range

Does modulation really influence range? Yes, and how! In CB radio, three different types of modulation are used for voice communications: AM, FM, and SSB.

Without going into detail—SSB is the modulation that promises the most range. This is due to required bandwidth: 2.4 kHz for SSB compared to 6 or 10 kHz for AM and FM. A narrower bandwidth means lower voice quality, but that's the price you pay. Compared to AM, all the power is concentrated in a quarter of the bandwidth, clearly reaching further. And compared to FM, the ratio is even more favorable for SSB. However, you lose the fabulous voice quality and reduced interference of FM.

SSB is therefore the better choice for "DX" traffic (long-distance). Which doesn't mean AM or FM can't sometimes reach thousands of kilometers as well—simply because the influence of good propagation conditions is much greater than the influence of modulation.

Plenty of Power—But Is Anyone Listening?

In every area of radio technology, there are "crocodiles"—big mouth, but small ears. In other words—very high transmitting power, but a "deaf" receiver. Of course, receiver sensitivity and performance must match the power. What's the point of being heard well in Argentina but not being able to receive signals from there?

Today's CB radios generally have good receivers in terms of sensitivity and AGC control. And actual sensitivity can hardly be influenced—only occasionally checked. It may happen that the receiver input is destroyed by a nearby lightning discharge, significantly reducing sensitivity. There are preamplifiers, but due to their high inherent noise and potential to overdrive the receiver, they cause more harm than good.

Differences in reception exist with additional devices such as noise reduction and noise blankers. If the radio doesn't offer this directly, additional devices like filters can help. Antenna position is also highly influential—being near interference sources like power lines makes a big difference.

The Key Factors for Maximum Range

Good range depends on many factors, some of which we can influence:

• A good directional antenna provides more range than an omnidirectional one—but only in one direction
• More power provides more range—if legally permitted. There are radios with 12 watts and those with 4 watts
• A good antenna location helps a lot—if the cable doesn't have to be excessively long
• A good cable always helps—without any ifs and buts
• Good propagation conditions are the most important factor, but we can't influence those. However, we can inform ourselves about what the conditions are and how they might develop in the coming hours and days
